| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP400 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R25℃=2.252KΩ | B Value: | B25/50=3935K |
|---|---|---|---|
| Response Time: | ≤150s | Max Energy Dissipation: | Approx 50μW |
| Withstand Voltage: | AC750V 1mA 1s In Still Air | Operating Temp Range: | 0~50℃ |
| Probe: | SUS304 φ5.6*1.85 | Wire: | PVC 30# (7/0.1) OD0.6*1.3 |
| Connector: | Molex-2P | Foam Pad: | White |
| High Light: | Medical Skin Temperature Probe,Foam Pad Skin Temperature Probe |
||
2.252KΩ Foam Pad Skin Temperature Porbe
Product Description:
A foam pad skin temperature probe is a device used to measure the temperature of the skin. It consists of a foam pad that is designed to be placed against the skin surface and a temperature sensor embedded within the pad. The foam pad provides comfort and insulation, allowing for accurate temperature measurement.
To use the foam pad skin temperature probe, the user simply applies the pad to the desired area of the skin. The temperature sensor within the pad detects the skin temperature and relays the information to a connected device or display unit. This allows for real-time monitoring of the skin temperature.
Foam pad skin temperature probes are commonly used in medical settings, such as hospitals and clinics, where monitoring of patient temperatures is essential. They can also be used in research studies or sports medicine to track changes in skin temperature during physical activities.
Overall, the foam pad skin temperature probe provides a convenient and non-invasive method for measuring skin temperature accurately. Its comfortable design and ease of use make it a valuable tool in various applications related to temperature monitoring.
Properties:
R25℃=2.252KΩ
B25/50=3935K
Response Time: ≤150s
Max Energy Dissipation: Approx 50μW
Withstand voltage: AC750V 1mA 1s In still air
Operating Temp. Range: 0~50℃
Probe: SUSφ7 T0.1
Wire: PVC 30# (7/0.1) OD0.6*1.3
Connector: Molex-2P
Foam Pad: White
Drawing:
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -40℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

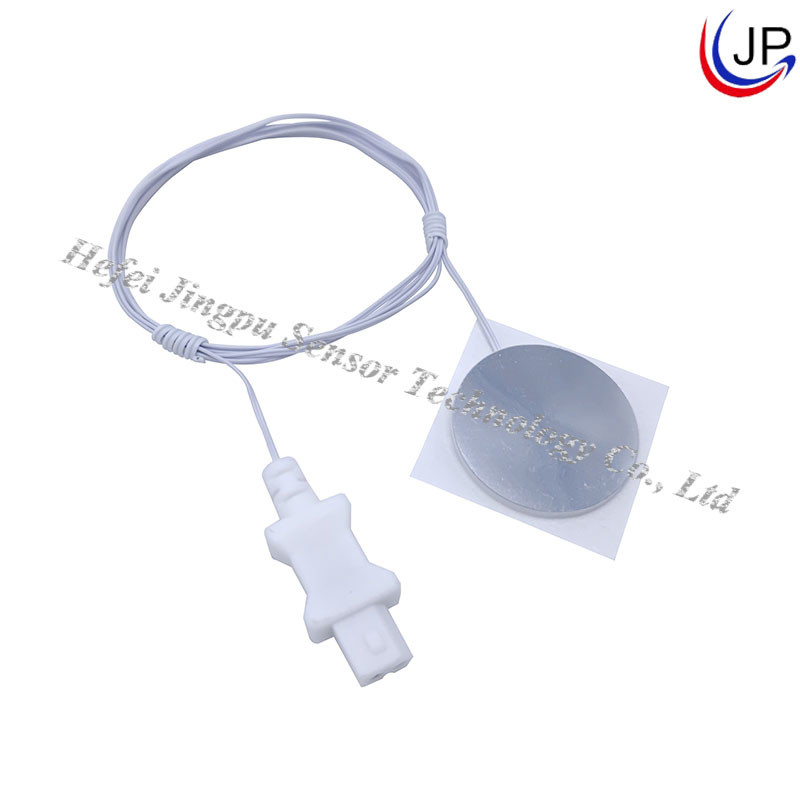

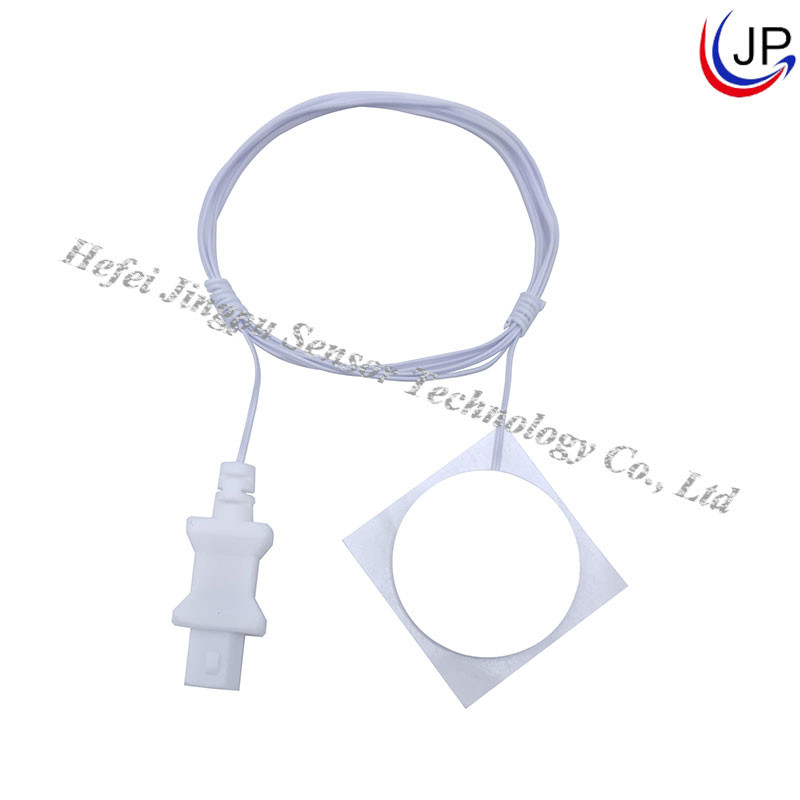

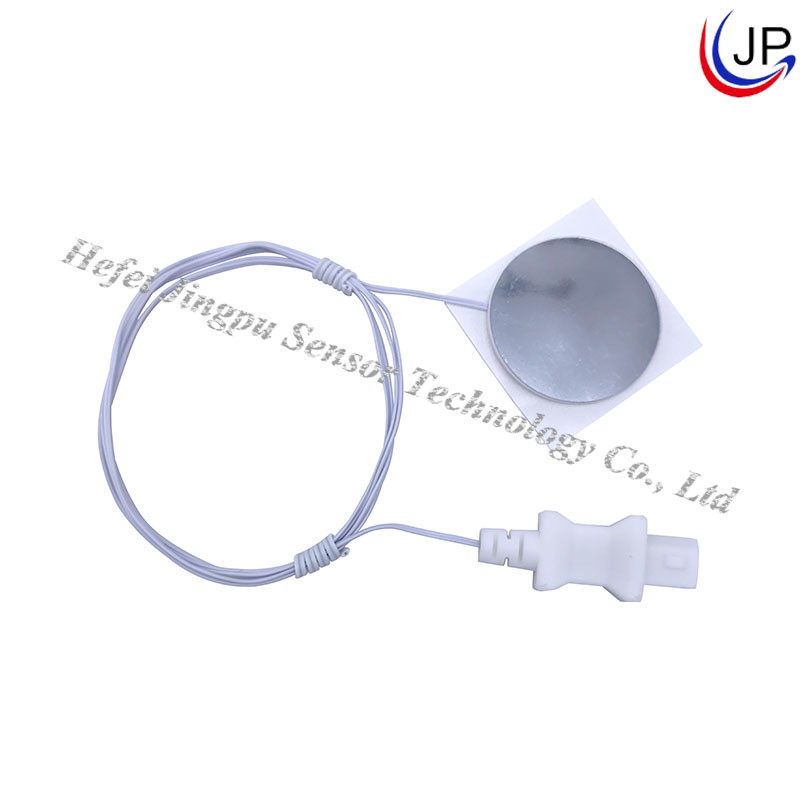

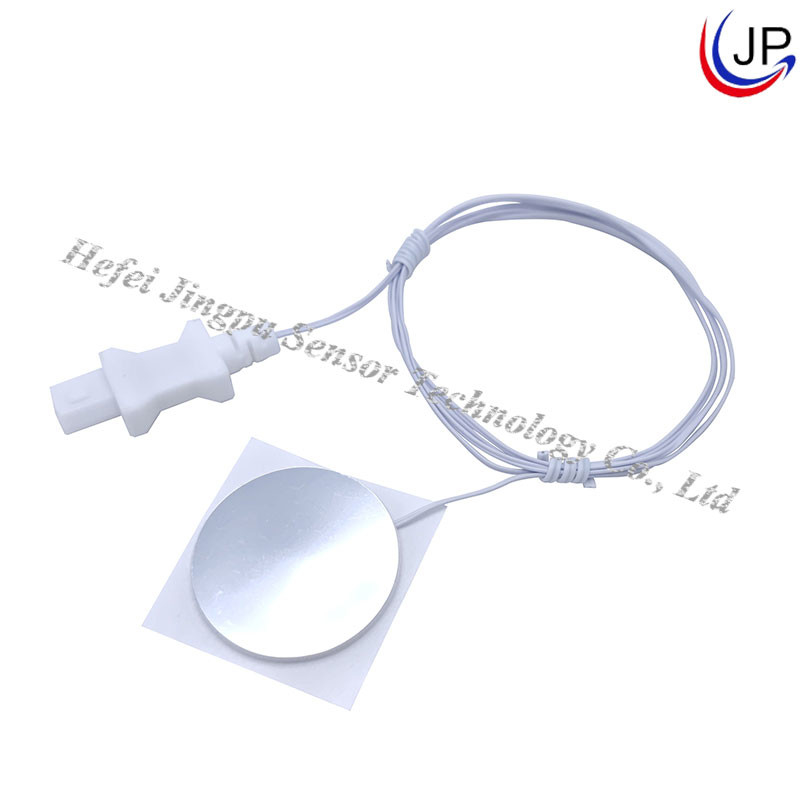

Product Images:
