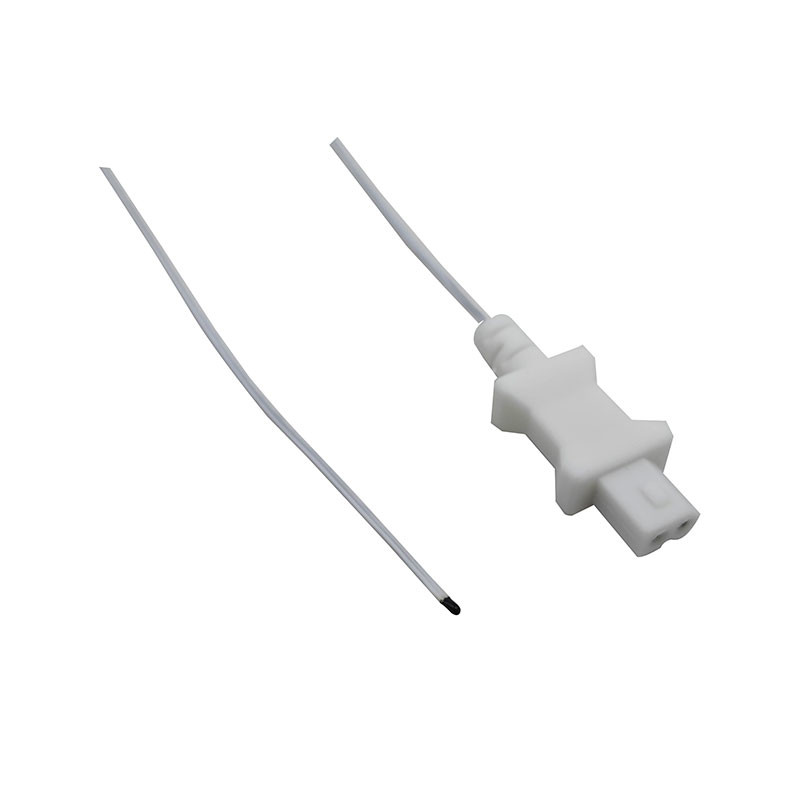

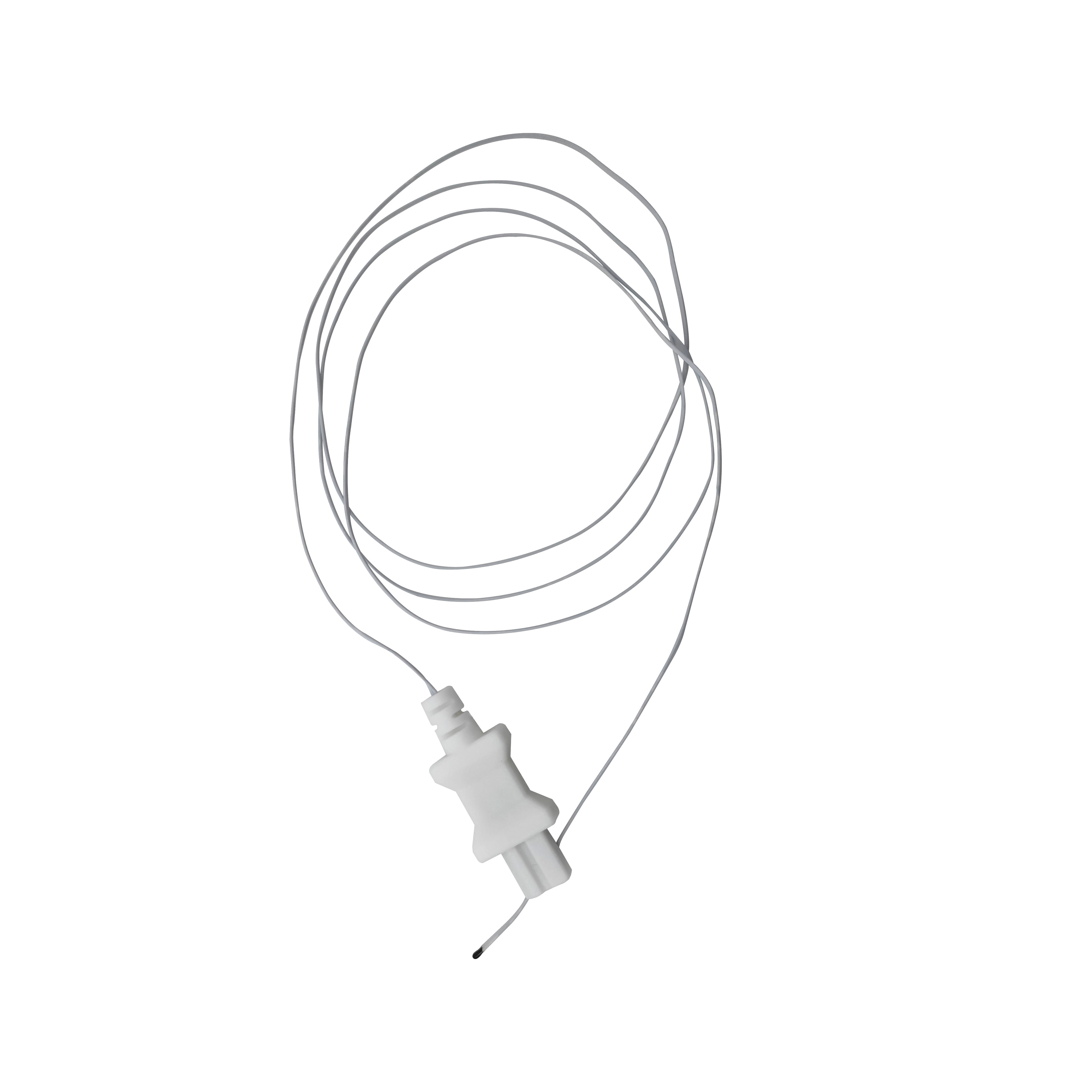

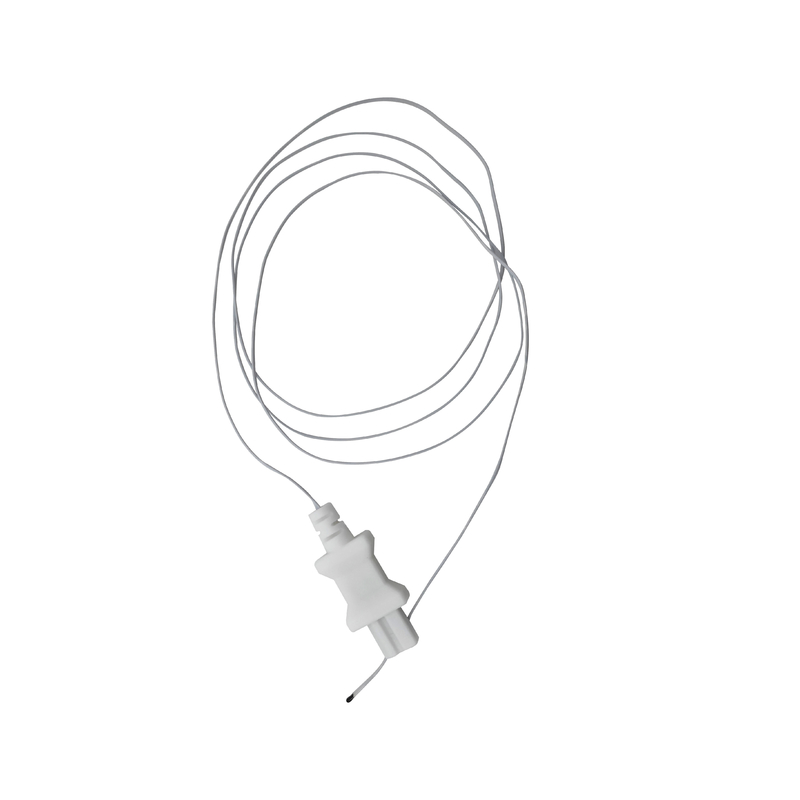

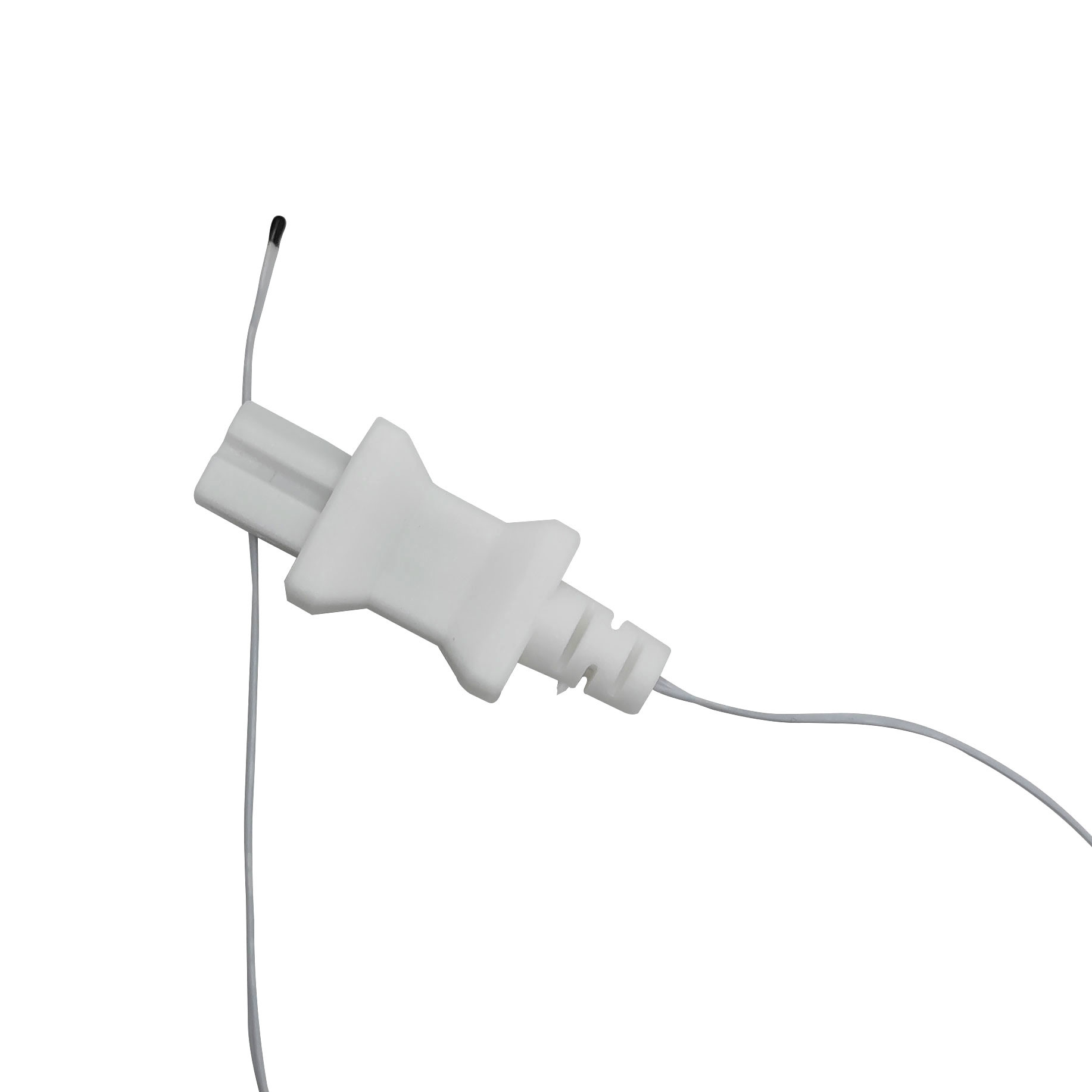

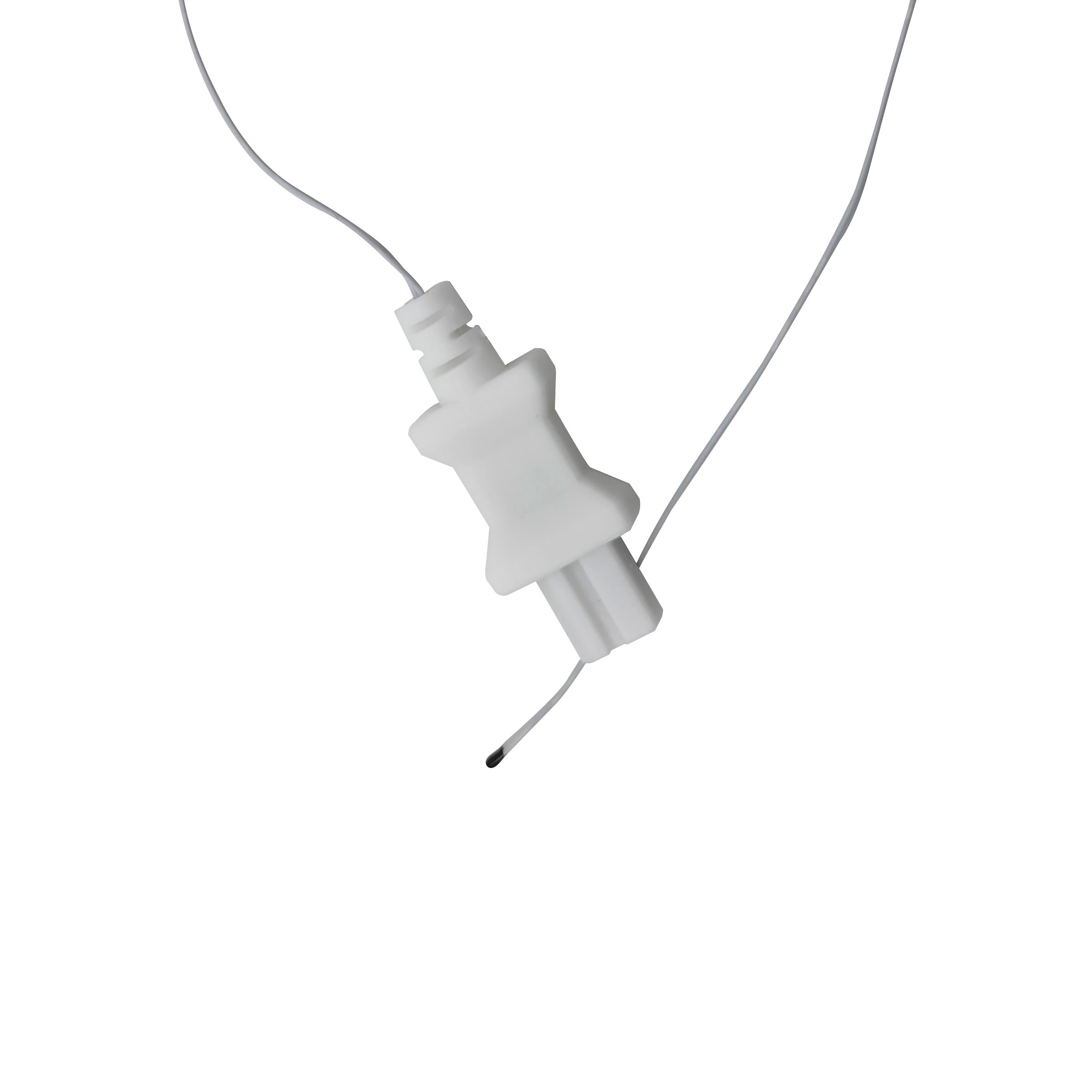

2.252K NTC Urinary Catheter Temperature Sensor

2.252K NTC Urinary Catheter Temperature Sensor

Product Description:

A urinary catheter temperature sensor typically refers to a medical device designed to monitor the temperature of urine within the bladder via a catheter inserted into the urethra. This type of sensor can be crucial in medical settings, especially in situations where precise monitoring of urinary output and temperature is necessary, such as in critically ill patients or those undergoing certain medical procedures.

An "NTC urinary catheter temperature sensor" refers to a specific type of temperature sensor used in urinary catheters, where "NTC" stands for "Negative Temperature Coefficient."

In this context, "NTC" indicates the type of thermistor used in the sensor. A thermistor is a type of resistor whose resistance changes significantly with temperature. In NTC thermistors, the resistance decreases as the temperature increases.

The use of an NTC thermistor in a urinary catheter temperature sensor allows for accurate monitoring of the temperature of urine within the bladder. This information can be vital in medical settings for assessing a patient's health status, monitoring for signs of infection, or ensuring the effectiveness of certain treatments.

These sensors are typically designed to be safe, reliable, and compatible with medical-grade materials to minimize the risk of adverse reactions or complications for the patient. They are often integrated into urinary catheters as part of larger monitoring systems used in hospitals or other healthcare facilities.

Parameter:

R25℃=2.252KΩ±0.1℃

Probe Size: Max φ1.5 black

Wire； PVC 28AWG*2C (1/0.3) OD0.55*1.15 White

Length: 900±50mm

Connector: TPE M2 White

Application:

2.252K NTC Urinary catheter temperature sensor is used for temperature measurement of urinary catherter.

Drawing:
