| Place of Origin: | China |
|---|---|
| Brand Name: | Hefei Jingpu Sensor Technology Co., Ltd |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000PCS |
| Price: | To be negotiated |
| Packaging Details: | Carton Package |
| Delivery Time: | 3-5 Weeks |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100k Pieces per Month |
| Resistance Value: | R25℃=10KΩ±2% | Beta Value: | B25/50=3950K ±1% |
|---|---|---|---|
| Probe: | SUS φ10*4.2, Black | Wire: | UL4484 28AWG (7/0.12) Parallel Wire, Black |
| Length: | 230±10mm | Connector: | PH-2Y, White |

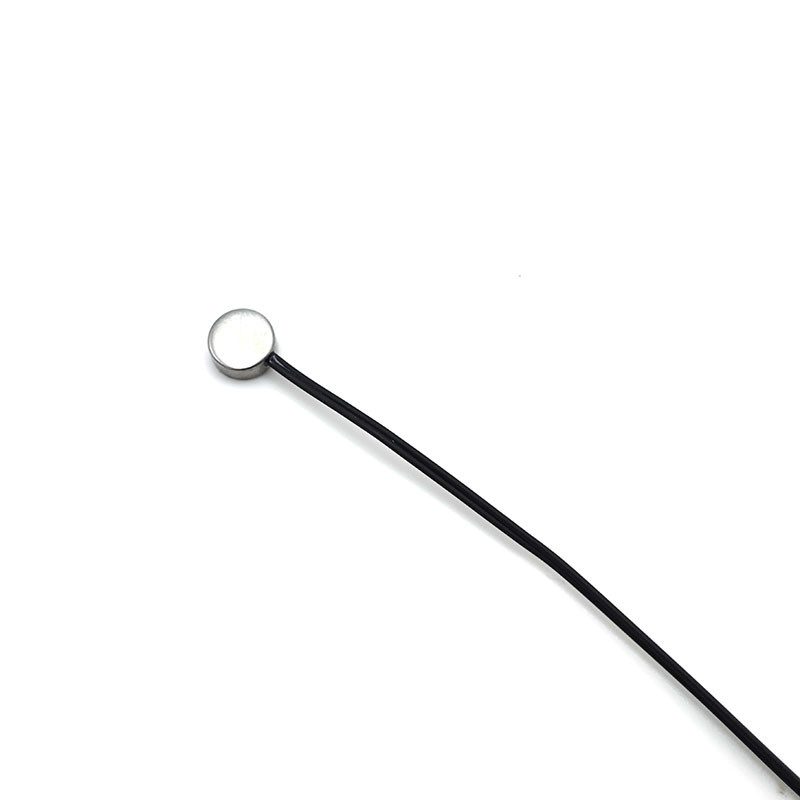

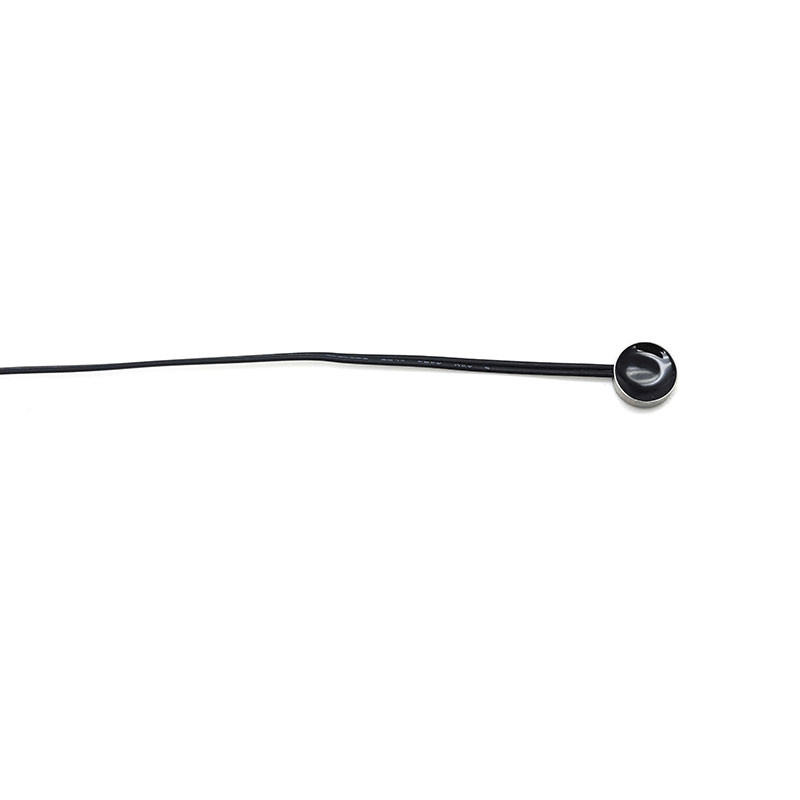

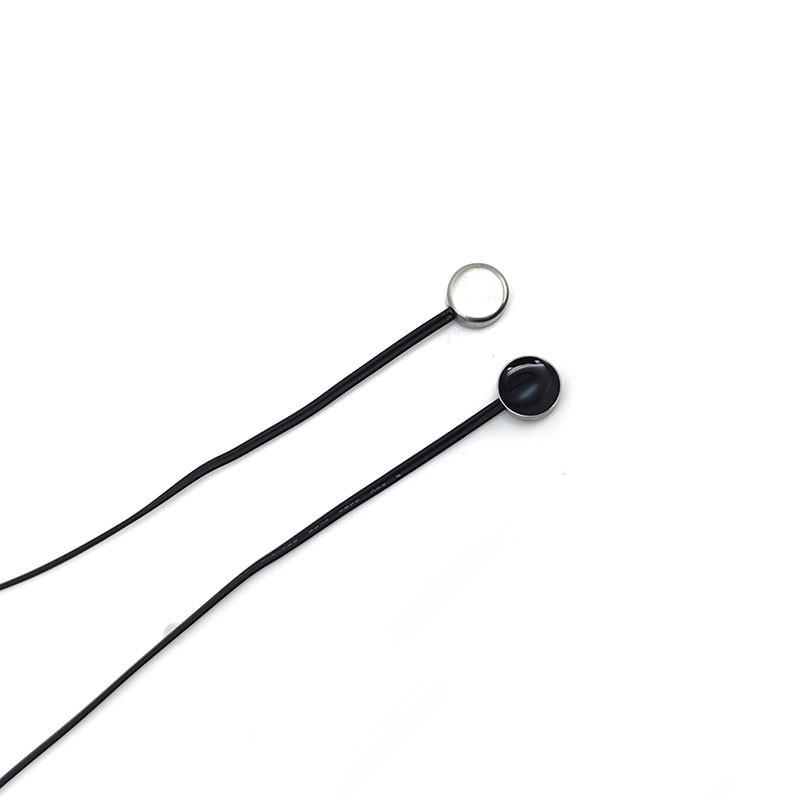

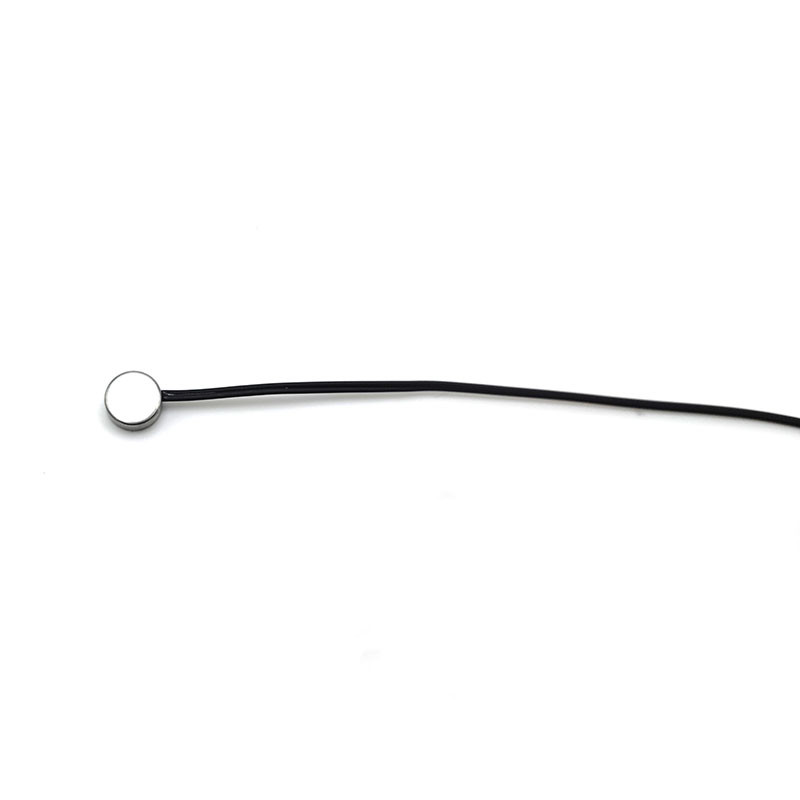

10KΩ±2% B25/50=3950K±1% NTC Temperature Sensor
Product Description:
This NTC Temperature Sensor is a high-quality NTC thermistor with a resistance value of R25℃=10KΩ±2% and beta value B25/50=3950±1%. This ensures highly accurate temperature readings across a wide range of operating conditions, making it ideal for a variety of industrial and commercial applications.
The sensor's probe is constructed from durable SUS (Stainless Steel) material, and its size is φ10*4.2.
For seamless integration into your system, the sensor comes equipped with a high-quality UL4487 28AWG (7/0.12) black wire, providing excellent electrical conductivity and insulation properties. With a length of 230±10mm, this wire offers flexibility and convenience in installation, allowing for easy positioning and routing.
To further enhance usability, the sensor is equipped with a PH-2Y white connector, facilitating quick and secure connections to your monitoring or control system. This ensures hassle-free setup and operation, minimizing downtime and maximizing productivity.
Features:
Resistance Value: R25℃=10KΩ±2%
Beta Value: B25/50=3950K±1%
Probe: SUS φ10*4.2, black
Wire: 28AWG, black
Length: 230±10mm
Connector: PH-2Y, white
